EAN

5999097911229

Warranty

3 year(s)

Material

ABS+Acryl

Lifespan

50 000 h

Battery type

3.6V / 500 mAh Ni-Cd

Color

White

Changeable Color Temperature

No

Socket

Cabel

Power

1 W

Voltage

230 V

Voltage range

220-240 V

Working temperature

-10 - +45 °C

IP Class

IP20

Length

225 mm

Width

370 mm

Height

46 mm

Color temperature

6 000 K

Lumen output

20 lm

Color temperature

CW

Beam angle

360 °

Chip type

5x 1500MCD

Number of LEDs

5 pcs

Dimmable

No

No information

CTN

94056120

Packaging size

375mm x 55mm x 235mm

Weight

485 gram

Gross volume

5 628,75 cm³

Carton EAN

5999097911236

Pcs / carton

10

Carton size

570mm x 395mm x 250mm

Exit Light IP20

Detailed description

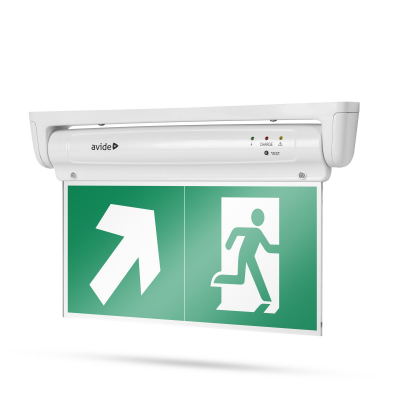

The Avide LED exit light is an edge-lit product with adhesive pictograms and 1 W output providing constant light. Back-up time in the case of a power failure is 180 minutes.


It can be mounted in four different ways (the sign can be mounted on the wall and ceiling alike and can also be rotated 90 °).

- suspended from a chain (80 cm)

- mounted on the ceiling

- mounted on a vertical wall in two different ways. Note that the product may also be mounted laterally with the set provided!


Contents of the box: light fixture, clear acrylic sheet, lateral mounting kit, 80 cm suspension chain, two types (horizontal, 45 °) of direction indicating arrows, pictograms with figure running to the right and left, complete instructions for use and installation in English and Hungarian.
